10 kVDC – 1407 Series

Categories: Connectors, Electrical Connectors, Electrical Equipment & Systems

Status:In stock

About Product

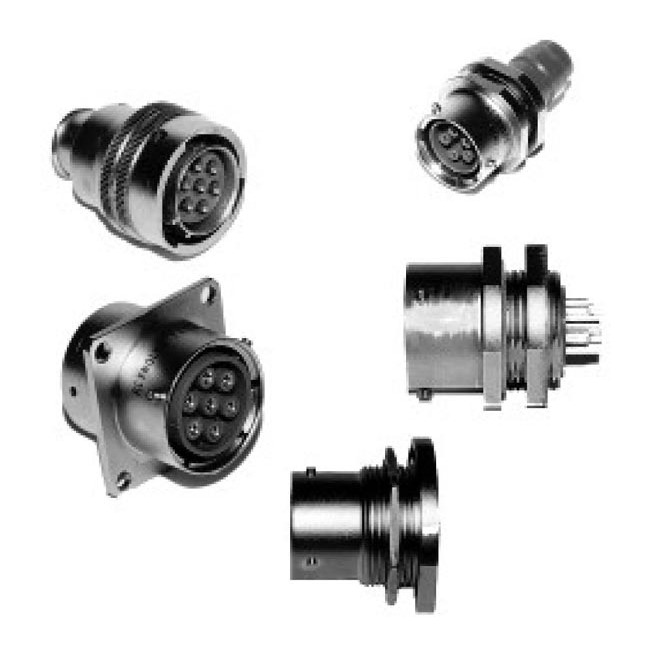

The 1407 Series is a ruggedized 7-pin, bayonet coupled connector family. The 1407 is another one of Teledyne Reynolds’ connector series that has been used extensively in airborne Traveling Wave Tube (TWT) and TWT Amplifier (TWTA) applications.The 1407 comes in, both, shielded and non-shielded configurations. Plug kits are available for customer-fabricated cable assemblies using Teledyne Reynolds’ wire.

Part Number	Series	Voltage Rating	Contact Material	Wire Type	Braid Termination	Assembly
167-9454	1407	10 kVDC	Brass	Shielded	Band	Plug Bag Assembly
167-9571	1407	10 kVDC	Brass	Non-Shielded	Band	Plug Bag Assembly
167-9618	1407	10 kVDC		Shielded	Band	Double-Ended Plug Cable Assembly
167-9607	1407	10 kVDC		Non-Shielded	Band	Double-Ended Plug Cable Assembly
178-8996	1407	10 kVDC	BeCu		Band	Receptacle Bag Assembly
167-8625	1407	10 kVDC	BeCu		Band	Receptacle Bag Assembly
167-9586	1407	10 kVDC	Brass	Non-Shielded	Band	Single-Ended Plug Cable Assembly
167-9603	1407	10 kVDC	Brass	Non-Shielded	Band	Single-Ended Plug Cable Assembly
178-8956	1407	10 kVDC	BeCu		Band	Receptacle Bag Assembly
167-8729	1407	10 kVDC	BeCu		Band	Receptacle Bag Assembly

Key attributes

Know your supplier

Website:https://www.teledynedefenseelectronics.com/reynolds/Pages/default.aspx
Company Name:Teledyne Reynolds
Location:Torrance, CA 90502
Description:Manufacturer of interconnection products such as high voltage connectors, cables, wire, cable assemblies, instrumentation and control cable assemblies for nuclear reactors, R.F. and microwave cable assemblies, and capacitors. Available in various voltage ratings, temperature capabilities, operating altitude, and features. Also offers custom products. Suitable for applications such as aircraft, aerospace, military, industrial, and commercial.
