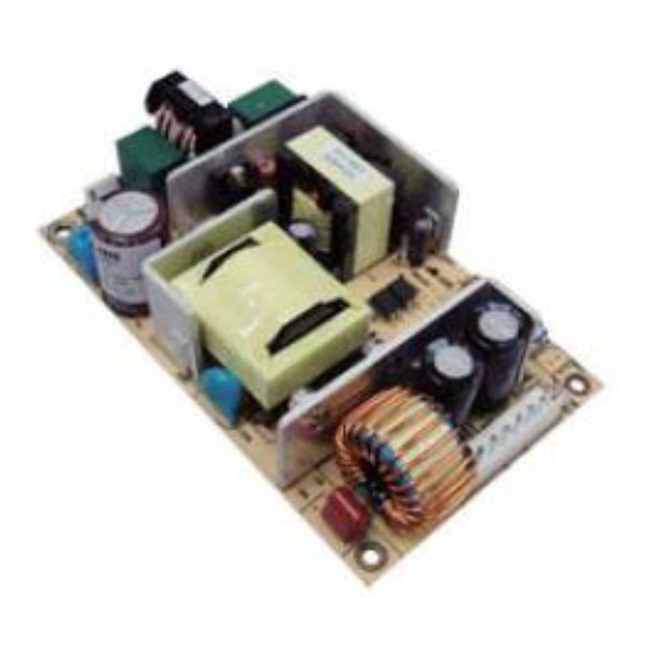

ABU 125 Series – 125 Watt (W) Single Output Open Frame Switching Power Supplies
In stock
Custom manufacturer 7 yrs CN
About Product
The ABU125 series is a single output power supply. This power supply is designed for a wide variety applications where high reliability is desired, including applications for the industrial and telecommunications markets. Excellent performance specifications are provided, together with compliance to European EMC (EN55022, Class B and EN61000-3-2), and Low Voltage directive (TUV EN60950).Single Output AC/DC Power Supply with PFC.
| Item # | Direct Current (DC) Output Voltage | Output Current (15 CFM Fan) | Adjustable Output Voltage Range | Start-Up Time at 230 VAC for Full Load | Overcurrent Protection |
|---|---|---|---|---|---|
| ABU125-050 | 5 V | 0 to 20 A | 4.75 to 5.25 V | 1500 ms | 22.0 to 30.0 A |
| ABU125-120 | 12 V | 0 to 10.42 A | 11.4 to 12.6 V | 1500 ms | 11.55 to 15.75 A |
| ABU125-150 | 15 V | 0 to 8.34 A | 14.3 to 15.7 V | 1500 ms | 9.24 to 12.6 A |
| ABU125-240 | 24 V | 0 to 5.21 A | 22.8 to 25.2 V | 1500 ms | 5.72 to 7.8 A |
| ABU125-270 | 27 V | 0 to 4.63 A | 25.7 to 28.3 V | 1500 ms | 5.06 to 6.9 A |
| ABU125-360 | 36 V | 0 to 3.47 A | 34.2 to 37.8 V | 1500 ms | 3.85 to 5.25 A |
| ABU125-480 | 48 V | 0 to 2.6 A | 45.6 to 50.4 V | 1500 ms | 2.86 to 3.9 A |
| ABU125-540 | 54 V | 0 to 1.96 A | 53.2 to 58.8 V | 1800 ms | 2.86 to 3.9 A |
Key attributes
Know your supplier
Website:https://www.triadmagnetics.com/
Company Name:Triad Magnetics
Location:Perris, CA 92571
Description:Manufacturer of standard and custom transformers, power supplies, LED drives, inductors, chokes, junction boxes, and adapters. Low to high volume production runs are available. Serves the food and beverage, commercial, renewable energy, medical, audio and sound processing, transportation, power conversion, and measurement industries. Stock items available. Meets Mil-Spec. CSA approved. CE certified. RoHS compliant. UL listed. JIT delivery.
