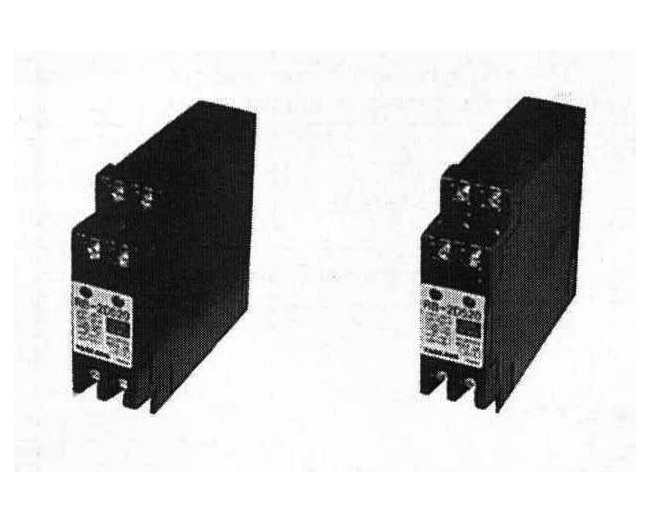

I/O Helper Medium- and Large-Capacity Multipole Relays
In stock
Custom manufacturer 7 yrs CN
About Product
Cover a Wide Range of Applications from Low Level to Power Loads Ideal as Additional Relays for PC and Microcomputer EquipmentFeaturesCan energize with small-capacity transistor output since flywheel diode is integrated. LED is provided and power consumption is as low as 0.7 W per circuit.Enables direct control of a wide range of loads, thus it is possible to fully compensate for insufficient output capacity of a general purpose PC relay.Incorporate hermetically sealed contacts to prevent aging, making them ideal for infrequent use applications. They permit high frequency switch ing which is impossible with conventional contact relays.Can reduce manufacturing time due to fast operational speed of 5ms or less.Recognized in accordance with USA and Canadian standards File No. E154773. For Class I, Division 2Groups A, B, C, D Hazardous Locations.Typical ApplicationsAddition relays for programmable controllersFor dry contact input of servo amplifiers, measuring instruments, etc.I/O interfaces of microcomputer logicOutput relays of photoelectric switches, proximity switches, etc.
| Type | Capacity Type | Rated Continuous Current | Maximum Making Current | Min. Operational Power Ratings | Incorporated Bestact Type (Item Type) |
|---|---|---|---|---|---|
| RB-2D2520C | Medium-Capacity Type | 3 A | 240VAC 15A (PF: 0.7) | 24V 1mA | R25, Medium-Capacity (For heavy duty) |
| RB-2D520C | Large-Capacity Type | 5 A | 240VAC 30A (PF: 0.7) | 24V 1mA | R15, Large-Capacity (For heavy duty) |
