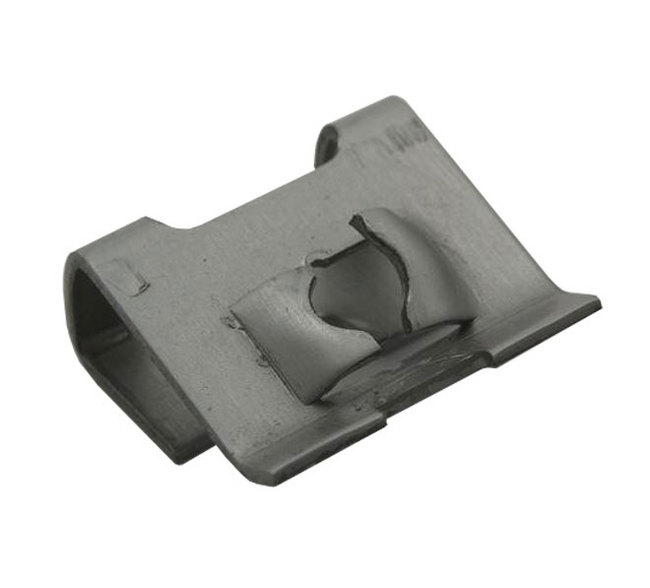

J-Nuts – 3000 Series

In stock

Custom manufacturer 7 yrs CN

About Product

J-Nut type speed fasteners press easily into self-retained positions over panel edges or in center-panel locations. They are ideally suited for blind assembly or other hard-to-reach installations. The 3000 series contains a large selection of standard J-Nut fasteners, however we also specialize in manufacturing custom designs for unique applications. Our products are horizontally stamped in fourslide machines. Our staff will help you with your design, provide you with pricing and produce a final part print for your approval. Please contact us for production run minimums (sales@e-qual-fast.com).

ACS # Item Name Panel Range (P) Length (A) Width (B) Max Center of Hole to Edge (C) Center to End (X) Panel Hole Dia. (G) Material Thickness (T) J-Nuts Design Variation
3000 J-Nut – 3000 Series 0.025 to 0.040 0.47 0.500 0.218 0.210 0.187 0.017 1,3,5
3002 J-Nut – 3000 Series 0.025 to 0.040 0.63 0.312 0.296 0.290 0.187 0.017 1,4
3004 J-Nut – 3000 Series 0.025 to 0.040 0.81 0.312 0.468 0.300 0.187 0.017 1,4
3006 J-Nut – 3000 Series 0.041 to 0.051 0.50 0.500 0.250 0.210 0.250 0.017 1,5
3008 J-Nut – 3000 Series 0.045 to 0.062 0.47 0.500 0.218 0.210 0.187 0.017 1,3,5
3010 J-Nut – 3000 Series 0.045 to 0.062 0.63 0.312 0.296 0.290 0.187 0.017 1,4
3012 J-Nut – 3000 Series 0.045 to 0.062 0.81 0.312 0.468 0.300 0.187 0.017 1,4
3014 J-Nut – 3000 Series 0.096 to 0.104 0.51 0.500 0.250 0.200 0.218 0.022 3,5
3016 J-Nut – 3000 Series 0.100 to 0.115 0.63 0.375 0.250 0.330 0.250 0.025 4
3018 J-Nut – 3000 Series 0.125 to 0.145 0.49 0.500 0.250 0.200 0.250 0.022 3,5
3020 J-Nut – 3000 Series 0.025 to 0.040 0.47 0.500 0.218 0.200 0.187 0.025 1,3,5
3022 J-Nut – 3000 Series 0.025 to 0.040 0.63 0.312 0.296 0.290 0.187 0.025 1,4
3024 J-Nut – 3000 Series 0.025 to 0.040 0.81 0.312 0.468 0.300 0.187 0.025 1,4
3026 J-Nut – 3000 Series 0.045 to 0.062 0.47 0.500 0.218 0.200 0.187 0.025 1,3,5
3028 J-Nut – 3000 Series 0.045 to 0.062 0.81 0.312 0.468 0.300 0.187 0.025 1,4
3030 J-Nut – 3000 Series 0.045 to 0.062 0.63 0.312 0.296 0.290 0.187 0.025 1,4
3032 J-Nut – 3000 Series 0.055 to 0.070 0.62 0.312 0.296 0.290 0.187 0.025 1,4
3034 J-Nut – 3000 Series 0.168 to 0.198 0.57 0.375 0.234 0.330 0.218 0.025 4
3035 J-Nut – 3000 Series 0.025 to 0.032 0.49 0.500 0.250 0.230 0.218 0.025 1,3,5,6
3036 J-Nut – 3000 Series 0.044 to 0.054 0.64 0.375 0.281 0.320 0.250 0.025 4
3040 J-Nut – 3000 Series 0.068 to 0.074 0.44 0.328 0.245 0.180 0.218 0.022 1,5
3042 J-Nut – 3000 Series 0.094 to 0.102 0.63 0.375 0.250 0.320 0.250 0.025 4
3044 J-Nut – 3000 Series 0.025 to 0.040 0.53 0.500 0.234 0.250 0.218 0.017 1,3,5,6
3046 J-Nut – 3000 Series 0.025 to 0.040 0.68 0.407 0.328 0.300 0.218 0.017 1,4
3048 J-Nut – 3000 Series 0.025 to 0.040 0.87 0.407 0.514 0.310 0.218 0.017 1,4
3050 J-Nut – 3000 Series 0.032 to 0.040 0.50 0.500 0.265 0.210 0.250 0.017 1,5
3052 J-Nut – 3000 Series 0.040 to 0.051 0.49 0.500 0.265 0.200 0.250 0.017 1,5
3054 J-Nut – 3000 Series 0.045 to 0.062 0.52 0.500 0.234 0.250 0.218 0.017 1,3,5
3056 J-Nut – 3000 Series 0.045 to 0.062 0.87 0.407 0.514 0.310 0.218 0.017 1,4
3058 J-Nut – 3000 Series 0.045 to 0.062 0.68 0.407 0.328 0.300 0.218 0.017 1,4
3060 J-Nut – 3000 Series 0.094 to 0.102 0.63 0.375 0.250 0.310 0.250 0.017 4
3062 J-Nut – 3000 Series 0.025 to 0.074 0.70 0.375 0.343 0.320 0.218 0.031 1,2
3064 J-Nut – 3000 Series 0.032 to 0.051 0.48 0.500 0.250 0.200 0.218 0.028 1,3,5
3066 J-Nut – 3000 Series 0.032 to 0.064 0.77 0.437 0.375 0.350 0.281 0.028 1,3
3068 J-Nut – 3000 Series 0.035 to 0.045 0.88 0.562 0.468 0.350 0.250 0.028
3069 J-Nut – 3000 Series 0.032 to 0.051 0.49 0.500 0.250 0.220 0.218 0.028
3070 J-Nut – 3000 Series 0.035 to 0.051 0.64 0.437 0.312 0.290 0.281 0.020
3072 J-Nut – 3000 Series 0.036 to 0.046 0.69 0.375 0.343 0.330 0.218 0.031
3074 J-Nut – 3000 Series 0.044 to 0.054 0.64 0.375 0.281 0.320 0.250 0.028
3076 J-Nut – 3000 Series 0.050 to 0.065 0.77 0.437 0.375 0.350 0.281 0.028
3077 J-Nut – 3000 Series 0.045 to 0.062 0.49 0.500 0.250 0.210 0.218 0.031
3078 J-Nut – 3000 Series 0.050 to 0.094 0.51 0.500 0.250 0.200 0.218 0.022
3080 J-Nut – 3000 Series 0.051 to 0.064 0.50 0.500 0.250 0.220 0.218 0.022
3082 J-Nut – 3000 Series 0.070 to 0.090 0.72 0.407 0.375 0.310 0.220 0.017
3084 J-Nut – 3000 Series 0.075 to 0.100 0.63 0.437 0.250 0.300 0.218 0.025
3086 J-Nut – 3000 Series 0.090 to 0.110 0.51 0.500 0.250 0.200 0.218 0.022
3088 J-Nut – 3000 Series 0.094 to 0.102 0.63 0.375 0.250 0.320 0.250 0.017
3090 J-Nut – 3000 Series 0.100 to 0.115 0.63 0.375 0.250 0.330 0.250 0.028
3092 J-Nut – 3000 Series 0.115 to 0.128 0.63 0.437 0.250 0.300 0.218 0.025
3094 J-Nut – 3000 Series 0.120 to 0.130 0.63 0.437 0.250 0.310 0.218 0.025
3096 J-Nut – 3000 Series 0.020 to 0.030 0.50 0.500 0.250 0.220 0.218 0.022
3098 J-Nut – 3000 Series 0.023 to 0.027 0.50 0.500 0.250 0.220 0.218 0.022
3100 J-Nut – 3000 Series 0.023 to 0.051 0.48 0.500 0.250 0.200 0.218 0.028
3102 J-Nut – 3000 Series 0.025 to 0.040 0.68 0.407 0.328 0.300 0.218 0.028
3104 J-Nut – 3000 Series 0.025 to 0.045 0.53 0.500 0.234 0.250 0.218 0.028
3106 J-Nut – 3000 Series 0.025 to 0.040 0.50 0.500 0.250 0.220 0.218 0.022
3108 J-Nut – 3000 Series 0.025 to 0.040 0.87 0.407 0.515 0.310 0.218 0.028
3110 J-Nut – 3000 Series 0.045 to 0.062 0.53 0.500 0.234 0.250 0.218 0.028
3111 J-Nut – 3000 Series 0.045 to 0.062 0.53 0.500 0.234 0.250 0.218 0.028
3112 J-Nut – 3000 Series 0.045 to 0.062 0.68 0.407 0.328 0.300 0.218 0.028
3114 J-Nut – 3000 Series 0.045 to 0.062 0.86 0.407 0.515 0.310 0.218 0.028
3116 J-Nut – 3000 Series 0.045 to 0.070 0.65 0.437 0.296 0.310 0.218 0.025
3118 J-Nut – 3000 Series 0.062 to 0.087 0.64 0.437 0.250 0.300 0.218 0.020
3120 J-Nut – 3000 Series 0.062 to 0.087 0.64 0.437 0.250 0.300 0.218 0.028
3122 J-Nut – 3000 Series 0.080 to 0.105 0.79 0.625 0.500 0.250 0.218 0.028
3124 J-Nut – 3000 Series 0.094 to 0.102 0.63 0.375 0.250 0.320 0.250 0.028
3125 J-Nut – 3000 Series 0.213 to 0.223 0.65 0.375 0.312 0.310 0.250 0.028
3126 J-Nut – 3000 Series 0.168 to 0.198 0.61 0.407 0.281 0.310 0.218 0.028
3127 J-Nut – 3000 Series 0.025 to 0.032 0.49 0.500 0.250 0.230 0.218 0.028
3128 J-Nut – 3000 Series 0.032 to 0.040 0.63 0.437 0.281 0.290 0.250 0.028
3129 J-Nut – 3000 Series 0.040 to 0.051 0.50 0.500 0.250 0.210 0.250 0.028
3132 J-Nut – 3000 Series 0.025 to 0.040 0.59 0.625 0.203 0.280 0.250 0.022
3133 J-Nut – 3000 Series 0.025 to 0.040 0.79 0.375 0.359 0.350 0.250 0.022
3134 J-Nut – 3000 Series 0.025 to 0.040 0.97 0.375 0.562 0.350 0.250 0.022
3138 J-Nut – 3000 Series 0.045 to 0.062 0.59 0.625 0.203 0.280 0.250 0.022
3140 J-Nut – 3000 Series 0.045 to 0.062 0.78 0.375 0.359 0.340 0.250 0.022
3142 J-Nut – 3000 Series 0.045 to 0.062 0.97 0.375 0.562 0.350 0.250 0.022
3143 J-Nut – 3000 Series 0.025 to 0.040 0.59 0.625 0.203 0.280 0.250 0.017
3146 J-Nut – 3000 Series 0.025 to 0.032 0.64 0.687 0.375 0.250 0.265 0.031
3148 J-Nut – 3000 Series 0.025 to 0.040 0.58 0.687 0.250 0.270 0.250 0.031
3150 J-Nut – 3000 Series 0.025 to 0.040 0.68 0.500 0.359 0.260 0.250 0.031
3156 J-Nut – 3000 Series 0.035 to 0.050 0.50 0.562 0.234 0.240 0.265 0.031
3157 J-Nut – 3000 Series 0.040 to 0.050 0.58 0.625 0.203 0.270 0.312 0.031
3158 J-Nut – 3000 Series 0.040 to 0.050 0.64 0.625 0.343 0.270 0.281 0.031
3160 J-Nut – 3000 Series 0.040 to 0.060 0.61 0.437 0.265 0.290 0.250 0.028
3161 J-Nut – 3000 Series 0.045 to 0.062 0.58 0.625 0.250 0.270 0.250 0.031
3162 J-Nut – 3000 Series 0.045 to 0.060 0.64 0.625 0.340 0.260 0.218 0.031
3164 J-Nut – 3000 Series 0.045 to 0.062 0.97 0.500 0.562 0.360 0.250 0.031
3166 J-Nut – 3000 Series 0.047 to 0.059 0.61 0.437 0.265 0.290 0.250 0.028
3168 J-Nut – 3000 Series 0.047 to 0.062 0.60 0.625 0.312 0.230 0.296 0.031
3170 J-Nut – 3000 Series 0.051 to 0.064 0.50 0.500 0.250 0.230 0.250 0.028
3172 J-Nut – 3000 Series 0.051 to 0.064 0.64 0.625 0.343 0.270 0.281 0.031
3174 J-Nut – 3000 Series 0.059 to 0.075 0.58 0.625 0.250 0.290 0.250 0.031
3176 J-Nut – 3000 Series 0.062 to 0.080 0.77 0.500 0.358 0.370 0.250 0.031
3178 J-Nut – 3000 Series 0.064 to 0.081 0.61 0.500 0.296 0.280 0.265 0.031
3180 J-Nut – 3000 Series 0.071 to 0.081 0.60 0.500 0.281 0.270 0.250 0.031
3182 J-Nut – 3000 Series 0.080 to 0.105 0.79 0.625 0.500 0.250 0.218 0.031
3184 J-Nut – 3000 Series 0.081 to 0.093 0.60 0.500 0.281 0.270 0.250 0.031
3186 J-Nut – 3000 Series 0.082 to 0.092 0.62 0.687 0.339 0.260 0.265 0.031
3188 J-Nut – 3000 Series 0.087 to 0.110 0.58 0.500 0.281 0.260 0.250 0.031
3189 J-Nut – 3000 Series 0.245 to 0.255 0.078 0.375 0.363 0.370 0.250 0.031
3190 J-Nut – 3000 Series 0.025 to 0.040 0.58 0.625 0.250 0.270 0.250 0.031
3192 J-Nut – 3000 Series 0.025 to 0.040 0.78 0.500 0.359 0.360 0.250 0.031
3194 J-Nut – 3000 Series 0.025 to 0.040 0.97 0.500 0.562 0.350 0.250 0.031
3196 J-Nut – 3000 Series 0.045 to 0.062 0.58 0.625 0.250 0.270 0.250 0.031
3198 J-Nut – 3000 Series 0.045 to 0.062 0.78 0.500 0.359 0.360 0.250 0.031
3200 J-Nut – 3000 Series 0.045 to 0.062 0.97 0.500 0.562 0.360 0.250 0.031
3202 J-Nut – 3000 Series 0.168 to 0.198 0.57 0.625 0.281 0.270 0.281 0.031
3204 J-Nut – 3000 Series 0.018 to 0.032 0.61 0.500 0.312 0.270 0.265 0.031
3208 J-Nut – 3000 Series 0.032 to 0.040 0.64 0.687 0.343 0.250 0.265 0.031
3210 J-Nut – 3000 Series 0.040 to 0.050 0.63 0.625 0.343 0.260 0.281 0.031
3212 J-Nut – 3000 Series 0.051 to 0.064 0.64 0.625 0.343 0.280 0.281 0.031
3214 J-Nut – 3000 Series 0.064 to 0.081 0.61 0.500 0.296 0.280 0.265 0.031
3215 J-Nut – 3000 Series 0.087 to 0.110 0.60 0.500 0.281 0.300 0.250 0.031
3216 J-Nut – 3000 Series 0.025 to 0.090 1.15 0.625 0.687 0.430 0.375 0.025
3218 J-Nut – 3000 Series 0.030 to 0.040 0.78 0.500 0.312 0.380 0.375 0.025
3220 J-Nut – 3000 Series 0.030 to 0.062 0.84 0.750 0.500 0.260 0.375 0.025
3222 J-Nut – 3000 Series 0.032 to 0.040 0.90 0.562 0.468 0.370 0.343 0.025
3224 J-Nut – 3000 Series 0.040 to 0.050 0.77 0.500 0.359 0.390 0.281 0.025
3226 J-Nut – 3000 Series 0.040 to 0.051 0.78 0.500 0.312 0.400 0.343 0.025
3228 J-Nut – 3000 Series 0.040 to 0.062 1.13 0.625 0.687 0.420 0.375 0.025
3230 J-Nut – 3000 Series 0.075 to 0.094 1.10 0.625 0.687 0.400 0.375 0.025
3232 J-Nut – 3000 Series 0.032 to 0.051 0.61 0.750 0.281 0.310 0.250 0.031
3233 J-Nut – 3000 Series 0.032 to 0.051 0.78 0.630 0.468 0.290 0.281 0.034
3234 J-Nut – 3000 Series 0.025 to 0.036 0.64 0.750 0.281 0.320 0.281 0.034
3236 J-Nut – 3000 Series 0.025 to 0.040 0.89 0.562 0.468 0.380 0.343 0.034
3238 J-Nut – 3000 Series 0.025 to 0.055 0.98 0.625 0.531 0.420 0.375 0.034
3240 J-Nut – 3000 Series 0.028 to 0.040 0.75 0.500 0.312 0.360 0.343 0.037
3242 J-Nut – 3000 Series 0.028 to 0.056 0.90 0.562 0.421 0.400 0.312 0.040
3246 J-Nut – 3000 Series 0.031 to 0.062 0.84 0.750 0.500 0.280 0.375 0.037
3248 J-Nut – 3000 Series 0.032 to 0.040 0.88 0.562 0.468 0.360 0.343 0.034
3250 J-Nut – 3000 Series 0.032 to 0.040 0.89 0.562 0.468 0.360 0.343 0.034
3252 J-Nut – 3000 Series 0.032 to 0.051 0.64 0.750 0.281 0.320 0.281 0.034
3256 J-Nut – 3000 Series 0.040 to 0.051 0.78 0.500 0.312 0.400 0.343 0.037
3258 J-Nut – 3000 Series 0.040 to 0.051 0.81 0.500 0.312 0.420 0.343 0.037
3260 J-Nut – 3000 Series 0.040 to 0.051 0.98 0.625 0.531 0.420 0.375 0.034
3261 J-Nut – 3000 Series 0.050 to 0.070 0.91 0.625 0.531 0.370 0.375 0.034
3262 J-Nut – 3000 Series 0.045 to 0.075 0.90 0.562 0.375 0.420 0.312 0.040
3264 J-Nut – 3000 Series 0.051 to 0.062 0.87 0.562 0.468 0.350 0.343 0.034
3266 J-Nut – 3000 Series 0.060 to 0.087 0.91 0.562 0.421 0.410 0.312 0.040
3267 J-Nut – 3000 Series 0.060 to 0.087 1.14 0.560 0.671 0.390 0.312 0.037
3270 J-Nut – 3000 Series 0.062 to 0.078 0.86 0.562 0.468 0.360 0.343 0.034
3272 J-Nut – 3000 Series 0.070 to 0.080 0.63 0.750 0.265 0.320 0.281 0.037
3274 J-Nut – 3000 Series 0.070 to 0.081 0.86 0.562 0.468 0.360 0.343 0.034
3276 J-Nut – 3000 Series 0.084 to 0.096 0.86 0.562 0.468 0.360 0.343 0.034
3278 J-Nut – 3000 Series 0.093 to 0.105 0.87 0.562 0.468 0.360 0.343 0.034
3280 J-Nut – 3000 Series 0.100 to 0.112 0.94 0.562 0.530 0.400 0.375 0.034
3282 J-Nut – 3000 Series 0.140 to 0.150 0.94 0.562 0.500 0.390 0.375 0.034
3284 J-Nut – 3000 Series 0.140 to 0.150 0.94 0.562 0.500 0.390 0.375 0.040
3288 J-Nut – 3000 Series 0.168 to 0.198 0.81 0.562 0.375 0.350 0.343 0.034
3290 J-Nut – 3000 Series 0.028 to 0.056 0.90 0.562 0.421 0.400 0.312 0.037
3292 J-Nut – 3000 Series 0.031 to 0.062 0.84 0.750 0.500 0.280 0.375 0.037
3294 J-Nut – 3000 Series 0.032 to 0.040 0.88 0.562 0.468 0.360 0.343 0.034
3296 J-Nut – 3000 Series 0.051 to 0.064 0.88 0.562 0.500 0.360 0.343 0.034
3298 J-Nut – 3000 Series 0.062 to 0.078 0.86 0.562 0.468 0.360 0.343 0.034
3300 J-Nut – 3000 Series 0.070 to 0.081 0.88 0.562 0.468 0.360 0.343 0.034
3302 J-Nut – 3000 Series 0.094 to 0.102 0.87 0.562 0.468 0.370 0.343 0.034

Key attributes

Know your supplier


Website:http://www.e-qual-fast.com
Company Name:ACS Manufacturing
Location:South Elgin, IL 60177
Description:Manufacturer of standard and custom designed spring steel fasteners including U-clips and single-threaded nuts. Types of U-clips include standard, metric and winged U-clips. U, J, twin and self-locking flat nuts are available.

Product Reviews

Maden is absolutely amazing! Their team was a real pleasure to work with and check out our documents
Vlad Matsiiako
Co-founder, Infisical
Maden has been amazing for us! Even as a small team, we struggled to keep up with development and update documentation as changes were made. Now the docs are managed as code and are part of the development process and PR. As an open source project, moving documentation has
Maayan Salom
Co-founder, Elementary
This is a must have if you are building any kind of developer tools. We have used other options in the past that seem outdated in terms of look and feel compared to Maden. The team helped us
Zeno Rocha
CEO, Resend
My team loves Maden! Great product team.
Adam Carrigan
Co-founder, MindsDB
Maden was the only option that met all the requirements. To get the look, feel and features. or Mintlify be
Ashley Mulligan
Head of Product Engineering, Flatfile
Absolutely the best. It's damn easy to set up and the team was great to work with
Chun Jiang
CEO, Monterey AI
Why spend a week coding your own documentation (and optimizing it for SEO, design, etc.) when Maden gives you the best documentation in minutes?
Charly Poly
CEO, Defer
The way Maden displayed its documentation felt really user-friendly to us, and more importantly, to our developer customers.
Mark Bao
Co-founder, Goody

$0.00

Shipping

Shipping solutions for the selected quantity are currently unavailable

Delivery via maden

Expect your order to be delivered before scheduled dates or receive a 10% delay compensation

Secure payments

Every payment you make on Maden is secured with strict SSL encryption and PCI DSS data protection protocols

Refund policy

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Maden protects all your orders placed and paid on the platform with
Buy now, pay later. Learn more
Pay in 4 interest-free payments. Learn more

Explore from Premium Brands

Frequently Asked Questions

Maden is a multi-vendor marketplace platform where businesses can showcase and sell their products. We aim to connect vendors and customers, creating a thriving business ecosystem.
Many vendor profiles have already been created on Maden. Simply search for your business, claim your profile, verify your business, and start adding products to sell.
We’ve created preliminary profiles for various businesses to streamline the onboarding process. If you see your business listed, you can claim and verify it to start selling on Maden.
To claim your profile, locate your business on Maden, select the “Claim Profile” option, and follow the verification steps to prove ownership.
To ensure authenticity, you’ll need to provide official documentation or information that verifies your association with the business.
Maden may charge fees based on transaction volumes or subscription models. Check our pricing page for details on fees and any applicable charges.
Yes, once you claim your business profile, you can customize it to reflect your brand, add a logo, and upload your product listings.
We offer promotional tools, such as featured listings and sponsored placements, to help businesses reach a wider audience.
Our customer support team is available to help with any issues. You can reach out through the contact section on the Maden website.

Main Menu
