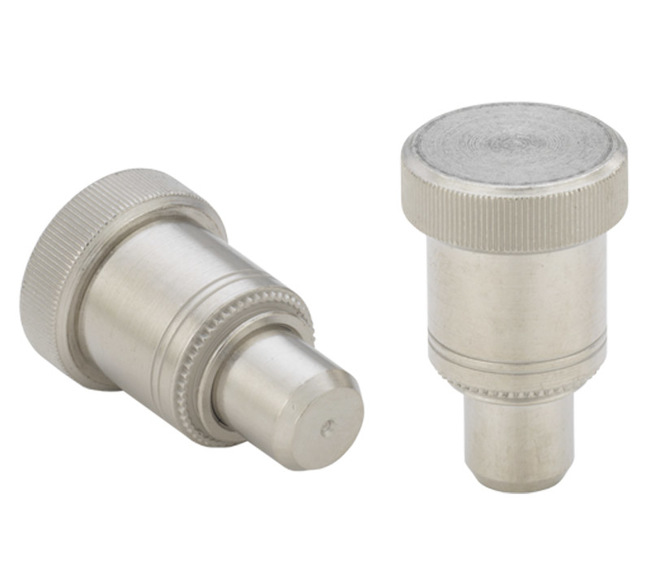

Locating Pin, Spring-loaded – Metric Types PSL2, PTL2
In stock
Custom manufacturer 7 yrs CN
About Product
Reverse side of sheet is flush when plunger is retracted.Quick lockout feature holds plunger in retracted position.For use in sheets of HRB 80 or less.Available as Type PSL2 without lockout feature on special order.
| Item # | Type | Hole Size in Sheet + 0.08 | D – 0.13 | G ± 0.25 | T1 ± 0.25 | T2 Nom. | TOL_DH |
|---|---|---|---|---|---|---|---|
| PTL2-04-4 CN | PTL2 | 6.35 mm | 10.30 mm | 15.11 | 10.92 | 8.64 mm | 0 |
| PTL2-04-4 CN | PTL2 | 6.35 mm | 10.30 mm | 15.11 | 10.92 | 8.64 mm | 0 |
| PSL2-04-4 CN | PSL2 | 6.35 mm | 10.30 mm | 12.95 | 8.89 | 8.64 mm | 0 |
| PSL2-04-4 CN | PSL2 | 6.35 mm | 10.30 mm | 12.95 | 8.89 | 8.64 mm | 0 |
Key attributes
Know your supplier
Website:http://www.swaco.com/index.html
Company Name:S.W. Anderson
Location:Bolingbrook, IL 60440
Description:ISO 9001 certified ROHS compliant distributor of specialty fasteners, standard fasteners, OEM components & electro-mechanical products. Products include self-clinching fasteners, nuts & bolts, electronic hardware, brass inserts, rivets, spacers, stand-offs, spring devices, drawer slides, isolators & machinery mounts. Services include bin stocking programs, virtual warehouse, special packaging, onsite ordering system, bar coding & kit building.
