Quiet Line High Voltage Wire and Cable
In stock
Custom manufacturer 7 yrs CN
About Product

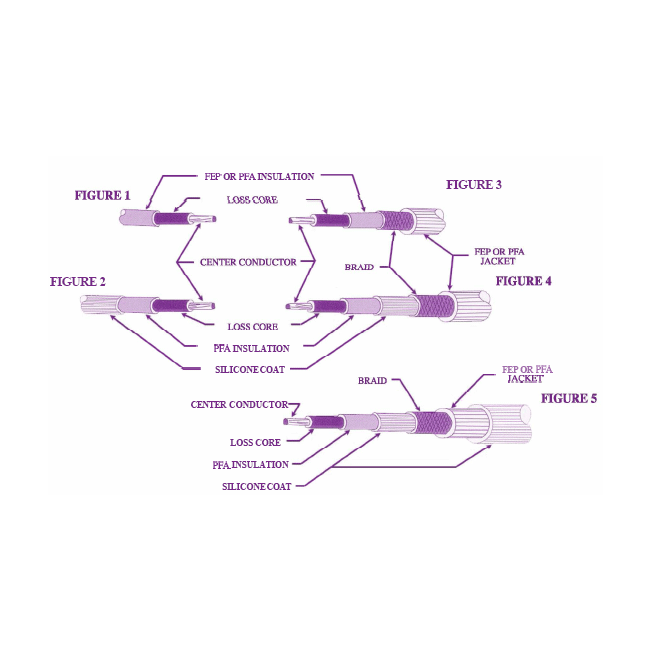

“Quiet Line” Distributed Loss R.F. Attenuation CableQuiet Line is a continuously extruded, distributed loss, low pass filter line for high voltage applications. Quiet line is a flexible element offering R.F. power attenuation and can be spliced onto an existing high voltage lead assembly or supplied as an entire high voltage lead assembly.Quiet Line is available with or without a silicone rubber coating. This continuous thin wall coating is applied over the FEP or PFA jacket and allows the user to achieve a superior dielectric bond when potting or encapsulating with a compatible silicone material.Quiet Line is available either shielded or non-shielded with or without the silicone rubber coating. Six loss core diameters are offered providing a range of rated voltages and R.F. insertion loss characteristics. The configurations areshown with the attributes of each configuration.Special configurations are available pending a review of your requirements by Reynolds engineering department personnel.Operating Temperature-55 to +125 ºC
| Part Number | Attenuation (480 MHZ) | Attenuation (2.4 GHZ) | Conductor Gauge | Conductor Strands | Diameter | Conductor Plating | Voltage Rating |
|---|---|---|---|---|---|---|---|
| 178-8051 | 11 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 0.085 in | Silver Plated | 12 kVDC |
| 178-8301 | 15 dB/ft | 60 dB/ft | 24 AWG | 19/36 | 1.8 mm | Silver Plated | 15 kVDC |
| 178-8053 | 21 dB/ft | 140 dB/ft | 22 AWG | 19/34 | 3.8 mm | Silver Plated | 20 kVDC |
| 178-8050 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 0.130 in | Silver Plated | 20 kVDC |
| 178-8382 | 15 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 0.110 in | Silver Plated | 20 kVDC |
| 178-8253 | 21 dB/ft | 130 dB/ft | 20 AWG | 19/32 | 3.5 mm | Silver Plated | 20 kVDC |
| 178-8054 | 21 dB/ft | 130 dB/ft | 20 AWG | 19/32 | 0.150 in | Silver Plated | 20 kVDC |
| 178-8104 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 3.5 mm | Silver Plated | 20 kVDC |
| 178-8055 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 0.150 in | Silver Plated | 20 kVDC |
| 178-8024 | 11 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 2.4 mm | Silver Plated | 12 kVDC |
| 178-8302 | 15 dB/ft | 60 dB/ft | 24 AWG | 19/36 | 0.20 mm | Silver Plated | 15 kVDC |
| 178-7968 | 21 dB/ft | 140 dB/ft | 22 AWG | 19/34 | 4.0 mm | Tin Plated | 20 kVDC |
| 178-8025 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 3.5 mm | Silver Plated | 20 kVDC |
| 178-8381 | 15 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 3.0 mm | Silver Plated | 20 kVDC |
| 178-8254 | 21 dB/ft | 130 dB/ft | 20 AWG | 19/32 | 3.8 mm | Silver Plated | 20 kVDC |
| 178-7953 | 21 dB/ft | 130 dB/ft | 20 AWG | 19/32 | 4.0 mm | Tin Plated | 20 kVDC |
| 178-8105 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 0.150 in | Silver Plated | 20 kVDC |
| 178-7952 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 0.160 in | Silver Plated | 20 kVDC |
| 178-8069 | 11 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 0.135 in | Silver Plated | 12 kVDC |
| 178-8772 | 21 dB/ft | 130 dB/ft | 20 AWG | 19/32 | 0.250 in | Silver Plated | 20 kVDC |
| 178-8064 | 11 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 0.145 in | Silver Plated | 12 kVDC |
| 178-8063 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 0.200 in | Silver Plated | 20 kVDC |
| 178-8337 | 15 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 4.3 mm | Silver Plated | 20 kVDC |
| 178-8265 | 21 dB/ft | 130 dB/ft | 20 AWG | 19/32 | 0.200 in | Silver Plated | 20 kVDC |
| 178-8106 | 21 dB/ft | 130 dB/ft | 22 AWG | 19/34 | 4.9 mm | Silver Plated | 20 kVDC |
| 178-8306 | 11 dB/ft | 90 dB/ft | 22 AWG | 19/34 | 0.155 in | Silver Plated | 12 kVDC |
| 178-8879 | 22 AWG | 19/34 | 0.090 in | Silver Plated | 12 kVDC | ||
| 178-8880 | 22 AWG | 19/34 | 0.100 in | Silver Plated | 12 kVDC | ||
| 178-5225 | 28 AWG | 19/40 | 1.524 mm | Silver Plated | 5 kVDC | ||
| 178-9519 | 24 AWG | 19/36 | 0.073 in | Silver Plated | 15 kVDC |
Key attributes
Know your supplier
Website:https://www.teledynedefenseelectronics.com/reynolds/Pages/default.aspx
Company Name:Teledyne Reynolds
Location:Torrance, CA 90502
Description:Manufacturer of interconnection products such as high voltage connectors, cables, wire, cable assemblies, instrumentation and control cable assemblies for nuclear reactors, R.F. and microwave cable assemblies, and capacitors. Available in various voltage ratings, temperature capabilities, operating altitude, and features. Also offers custom products. Suitable for applications such as aircraft, aerospace, military, industrial, and commercial.
