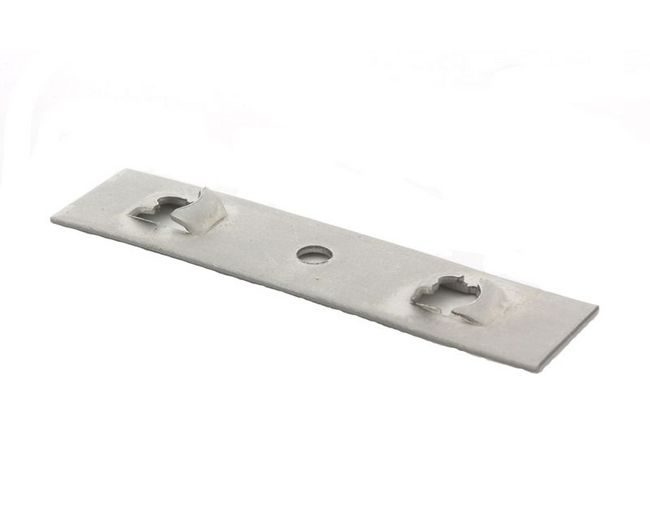

Twin Nuts – 5300 Series
In stock
Custom manufacturer 7 yrs CN
About Product
Twin type Speed Nut fasteners offer tremendous advantages over individual threaded nuts, lock and spanner washers on assemblies which have fastening locations in pairs. They are faster and easier to apply with only a single fastener to handle where four to six pieces are ordinarily required. Once the screws are started, the Speed Nut cannot turn, thereby eliminating the need for a wrench. this leaves both hands free to drive the screws into a properly locked position.Our 5300 series contains a large selection of standard Twin Nut fasteners, however we specialize in manufacturing custom designs for unique applications. Our products are horizontally stamped in fourslide machines. Our staff will help you with your design, provide you with pricing and produce a final part print for your approval. Please contact us for production run minimums (sales@e-qual-fast.com).
| ACS # | Item Name | Center to Center (C) | Screw Size | Twin Nuts Design Variation | Length (L) | Width (W) | Center to End (X) | Hole Diameter (H) | Material Thickness (T) |
|---|---|---|---|---|---|---|---|---|---|
| 5302 | Twin Nuts | 0.625 | 6-32 | B | 1.25 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5304 | Twin Nuts | 0.625 | 6AB | B | 1.25 | 0.375 | 0.310 | 0.105 | 0.025 |
| 5306 | Twin Nuts | 0.625 | 8-32 | B | 1.25 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5308 | Twin Nuts | 0.625 | 8AB | B | 1.25 | 0.375 | 0.310 | 0.105 | 0.025 |
| 5310 | Twin Nuts | 0.625 | 8AB | B | 1.25 | 0.375 | 0.310 | 0.105 | 0.028 |
| 5312 | Twin Nuts | 0.625 | 10-24 | B | 1.25 | 0.500 | 0.310 | 0.105 | 0.022 |
| 5314 | Twin Nuts | 0.625 | 10AB | B | 1.25 | 0.500 | 0.310 | 0.105 | 0.031 |
| 5316 | Twin Nuts | 0.687 | 6B | A | 1.31 | 0.312 | 0.310 | 0.105 | 0.025 |
| 5318 | Twin Nuts | 0.750 | 6-32 | B | 1.38 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5320 | Twin Nuts | 0.750 | 6AB | B | 1.38 | 0.375 | 0.310 | 0.105 | 0.025 |
| 5322 | Twin Nuts | 0.750 | 8-32 | B | 1.38 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5324 | Twin Nuts | 0.750 | 8AB | B | 1.38 | 0.375 | 0.310 | 0.105 | 0.028 |
| 5326 | Twin Nuts | 0.750 | 8A | A | 1.38 | 0.500 | 0.310 | 0.105 | 0.022 |
| 5328 | Twin Nuts | 0.750 | 8B | A | 1.38 | 0.625 | 0.310 | 0.132 | 0.028 |
| 5330 | Twin Nuts | 0.750 | 10-24 | B | 1.38 | 0.500 | 0.310 | 0.105 | 0.022 |
| 5332 | Twin Nuts | 0.750 | 10AB | B | 1.38 | 0.500 | 0.310 | 0.105 | 0.031 |
| 5334 | Twin Nuts | 0.875 | 6-32 | A | 1.50 | 0.500 | 0.310 | 0.140 | 0.017 |
| 5336 | Twin Nuts | 0.875 | 6-32 | B | 1.50 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5338 | Twin Nuts | 0.875 | 8-32 | B | 1.50 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5340 | Twin Nuts | 0.875 | 8AB | B | 1.50 | 0.375 | 0.310 | 0.105 | 0.028 |
| 5342 | Twin Nuts | 0.875 | 10-24 | B | 1.50 | 0.500 | 0.310 | 0.105 | 0.022 |
| 5344 | Twin Nuts | 0.875 | 10-24 | B | 1.50 | 0.500 | 0.310 | 0.140 | 0.022 |
| 5346 | Twin Nuts | 1.00 | 6-32 | B | 1.62 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5348 | Twin Nuts | 1.00 | 6-32 | A | 1.62 | 0.312 | 0.310 | 0.105 | 0.017 |
| 5350 | Twin Nuts | 1.00 | 6AB | B | 1.62 | 0.375 | 0.310 | 0.105 | 0.022 |
| 5352 | Twin Nuts | 1.00 | 6AB | B | 1.62 | 0.375 | 0.310 | 0.105 | 0.025 |
| 5354 | Twin Nuts | 1.00 | 8-32 | B | 1.62 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5356 | Twin Nuts | 1.00 | 8AB | B | 1.62 | 0.375 | 0.310 | 0.105 | 0.028 |
| 5358 | Twin Nuts | 1.00 | 8AB | B | 1.62 | 0.375 | 0.310 | 0.136 | 0.025 |
| 5360 | Twin Nuts | 1.00 | 8AB | A | 2.00 | 0.375 | 0.500 | 0.105 | 0.028 |
| 5362 | Twin Nuts | 1.00 | 8A | B | 1.62 | 0.375 | 0.310 | 0.187 | 0.025 |
| 5364 | Twin Nuts | 1.00 | 10-24 | B | 1.62 | 0.500 | 0.310 | 0.105 | 0.022 |
| 5366 | Twin Nuts | 1.00 | 10AB | B | 1.62 | 0.500 | 0.310 | 0.105 | 0.031 |
| 5368 | Twin Nuts | 1.25 | 6-32 | A | 1.87 | 0.375 | 0.310 | 0.105 | 0.017 |
| 5370 | Twin Nuts | 1.25 | 1/4-20 | 1.87 | 0.437 | 0.310 | 0.105 | 0.025 | |
| 5372 | Twin Nuts | 1.31 | 8-32 | 1.93 | 0.375 | 0.310 | 0.105 | 0.017 | |
| 5374 | Twin Nuts | 1.31 | 8A | 1.93 | 0.375 | 0.310 | 0.105 | 0.028 | |
| 5376 | Twin Nuts | 1.31 | 10-24 | 1.93 | 0.437 | 0.310 | 0.105 | 0.022 | |
| 5378 | Twin Nuts | 1.31 | 12-24 | 1.93 | 0.437 | 0.310 | 0.105 | 0.022 | |
| 5380 | Twin Nuts | 1.62 | 8 | 2.25 | 0.375 | 0.310 | 0.105 | 0.028 | |
| 5382 | Twin Nuts | 1.87 | 6-32 | 2.50 | 0.375 | 0.310 | 0.105 | 0.017 | |
| 5384 | Twin Nuts | 2.00 | 6-32 | 3.00 | 0.375 | 0.500 | 0.105 | 0.017 | |
| 5386 | Twin Nuts | 2.00 | 8B | 3.00 | 0.437 | 0.500 | 0.105 | 0.028 |
Key attributes
Know your supplier
Website:http://www.e-qual-fast.com
Company Name:ACS Manufacturing
Location:South Elgin, IL 60177
Description:Manufacturer of standard and custom designed spring steel fasteners including U-clips and single-threaded nuts. Types of U-clips include standard, metric and winged U-clips. U, J, twin and self-locking flat nuts are available.
