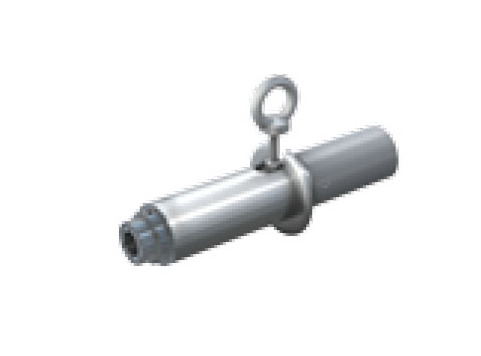

WEH® TW59 Quick Connectors for Filling
In stock
Custom manufacturer 7 yrs CN
About Product
The type TW59 quick connector is specifically designed for the filling of gas cylinders with propane and butane and represents a major step in the technology of safe application, economy, ergonomics and flexibility.Type TW59 provides an intrinsically safe connection. The seal between the quick connector and the gas cylinder valve is mechanically actuated and the sealing force is increased by the gas filling pressure. This means that there is no need for a compressed air safety reservoir, the air supply is used to withdraw the seal when connecting / disconnecting in order to achieve effortless operation.If needed, a second pneumatic inlet is provided for pilot pressure. This can be used to indicate the operational condition of the connector – i.e. whether connected or disconnected – and could for example be used to automatically begin the loading and unloading of the gas cylinders from the filling station.
| Category | Items |
|---|---|
| Brands | WEH® |
| Inlet External Thread (B1) | W21.8×1/14 in. LH |
| Note for Inlet External Thread (B1) | According to DIN 477 part 1. |
| Connection External Thread (B2) | W21.8×1/14 in. LH |
| Note for Connection External Thread (B2) | According to DIN 477 part 1. |
| Downloads | WEH® Connectors Pressure-Tight Connections in Seconds for Gaseous Applications |
Key attributes
Know your supplier
Website:https://www.weh.us/
Company Name:WEH Technologies Inc.
Location:Katy, TX 77494
Description:Manufacturer of standard and custom push-to-connect, multiple, quick connect/disconnect, extender, twin and leak and pressure test connectors, couplings, fittings, nipples and valves. Materials include corrosion resistant stainless steel, anodized aluminum and brass. Nozzles, plugs, receptacles, rigs, joints, CNG, hydrogen gas and coalescing filters, refueling dispenser components and fuel systems also available. Serves the automotive, HVAC, gas processing and other industries. CE certified.
