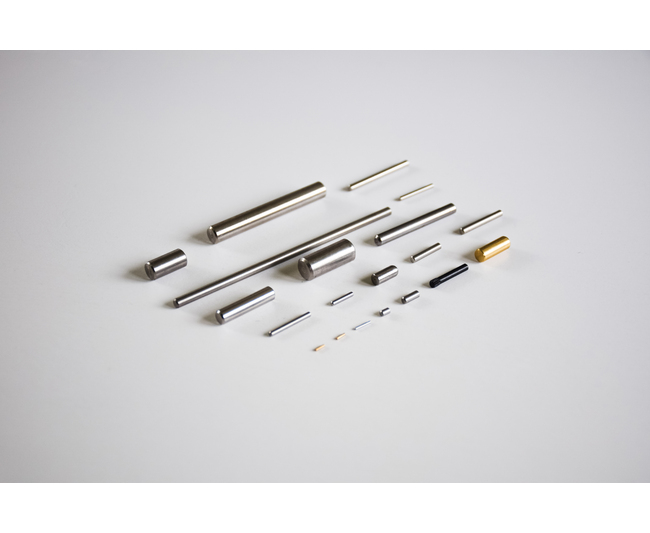

METRIC DOWEL PINS
In stock
Custom manufacturer 7 yrs CN
About Product
SPERRY AUTOMATICS COMPANY has been specializing in Metric Dowel Pins, screw machine products, both metric and standard Metric Dowel Pins since 1964. We maintain a large computer-monitored inventory of stainless steel dowel pins, used as precise locating devices in machinery, machined to tight tolerances to comply with customers’ needs. 303SS, 416SS, 316SS, Brass, Steel, Aluminum, Copper Inch and Metric Specials, MS16555’s, Din’s, and More Precision Ground To .0002 Tolerances Huge Variety Of Standards And Specials In Stock Custom Made Dowel Pins
| Item # | PN PREFIX | SIZE | DIAMETER | TOLERANCE |
|---|---|---|---|---|
| Item-1033 | SP1-1M | 3 mm | 1 mm | +0.009 |
| Item-1034 | SP1-2M | 4 mm | 1 mm | +0.009 |
| Item-1035 | SP1-3M | 5 mm | 1 mm | +0.009 |
| Item-1036 | SP1-4M | 6 mm | 1 mm | +0.009 |
| Item-1037 | SP1-5M | 8 mm | 1 mm | +0.009 |
| Item-1038 | SP1-6M | 10 mm | 1 mm | +0.009 |
| Item-1039 | SP1-7M | 12 mm | 1 mm | +0.002 |
| Item-1040 | SP2-2M | 4 mm | 1.5 mm | +0.009 |
| Item-1041 | SP2-3M | 5 mm | 1.5 mm | +0.002 |
| Item-1042 | SP2-4M | 6 mm | 1.5 mm | +0.009 |
| Item-1043 | SP2-5M | 8 mm | 1.5 mm | +0.009 |
| Item-1044 | SP2-6M | 10 mm | 1.5 mm | +0.009 |
| Item-1045 | SP2-7M | 12 mm | 1.5 mm | +0.009 |
| Item-1046 | SP2-8M | 14 mm | 1.5 mm | +0.009 |
| Item-1047 | SP2-9M | 16 mm | 1.5 mm | +0.009 |
| Item-1048 | SP3-2M | 4 mm | 2 mm | +0.009 |
| Item-1049 | SP3-3M | 5 mm | 2 mm | +0.009 |
| Item-1050 | SP3-4M | 6 mm | 2 mm | +0.002 |
| Item-1051 | SP3-5M | 8 mm | 2 mm | +0.009 |
| Item-1052 | SP3-6M | 10 mm | 2 mm | +0.009 |
| Item-1053 | SP3-7M | 12 mm | 2 mm | +0.009 |
| Item-1054 | SP3-8M | 14 mm | 2 mm | +0.009 |
| Item-1055 | SP3-9M | 16 mm | 2 mm | +0.009 |
| Item-1056 | SP3-10M | 18 mm | 2 mm | +0.009 |
| Item-1057 | SP3-11M | 20 mm | 2 mm | +0.002 |
| Item-1058 | SP4-2M | 4 mm | 2.5 mm | +0.009 |
| Item-1059 | SP4-3M | 5 mm | 2.5 mm | +0.009 |
| Item-1060 | SP4-4M | 6 mm | 2.5 mm | +0.002 |
| Item-1061 | SP4-5M | 8 mm | 2.5 mm | +0.002 |
| Item-1062 | SP4-6M | 10 mm | 2.5 mm | +0.009 |
| Item-1063 | SP4-7M | 12 mm | 2.5 mm | +0.009 |
| Item-1064 | SP4-8M | 14 mm | 2.5 mm | +0.009 |
| Item-1065 | SP4-9M | 16 mm | 2.5 mm | +0.009 |
| Item-1066 | SP4-10M | 18 mm | 2.5 mm | +0.002 |
| Item-1067 | SP4-11M | 20 mm | 2.5 mm | +0.002 |
| Item-1068 | SP4-12M | 24 mm | 2.5 mm | +0.009 |
| Item-1069 | SP5-1M | 4 mm | 3 mm | +0.012 |
| Item-1070 | SP5-2M | 5 mm | 3 mm | +0.004 |
| Item-1071 | SP5-3M | 6 mm | 3 mm | +0.004 |
| Item-1072 | SP5-4M | 8 mm | 3 mm | +0.012 |
| Item-1073 | SP5-5M | 10 mm | 3 mm | +0.012 |
| Item-1074 | SP5-6M | 12 mm | 3 mm | +0.004 |
| Item-1075 | SP5-7M | 14 mm | 3 mm | +0.012 |
| Item-1076 | SP5-8M | 16 mm | 3 mm | +0.012 |
| Item-1077 | SP5-9M | 18 mm | 3 mm | +0.012 |
| Item-1078 | SP5-10M | 20 mm | 3 mm | +0.012 |
| Item-1079 | SP5-11M | 24 mm | 3 mm | +0.012 |
| Item-1080 | SP5-12M | 28 mm | 3 mm | +0.012 |
| Item-1081 | SP6-2M | 5 mm | 4 mm | +0.012 |
| Item-1082 | SP6-3M | 6 mm | 4 mm | +0.012 |
| Item-1083 | SP6-4M | 8 mm | 4 mm | +0.012 |
| Item-1084 | SP6-5M | 10 mm | 4 mm | +0.012 |
| Item-1085 | SP6-6M | 12 mm | 4 mm | +0.004 |
| Item-1086 | SP6-7M | 14 mm | 4 mm | +0.012 |
| Item-1087 | SP6-8M | 16 mm | 4 mm | +0.012 |
| Item-1088 | SP6-9M | 18 mm | 4 mm | +0.012 |
| Item-1089 | SP6-10M | 20 mm | 4 mm | +0.012 |
| Item-1090 | SP6-11M | 24 mm | 4 mm | +0.012 |
| Item-1091 | SP6-12M | 28 mm | 4 mm | +0.004 |
| Item-1092 | SP7-2M | 5 mm | 5 mm | +0.012 |
| Item-1093 | SP7-3M | 6 mm | 5 mm | +0.012 |
| Item-1094 | SP7-4M | 8 mm | 5 mm | +0.012 |
| Item-1095 | SP7-5M | 10 mm | 5 mm | +0.012 |
| Item-1096 | SP7-6M | 12 mm | 5 mm | +0.012 |
| Item-1097 | SP7-7M | 14 mm | 5 mm | +0.012 |
| Item-1098 | SP7-8M | 16 mm | 5 mm | +0.012 |
| Item-1099 | SP7-9M | 18 mm | 5 mm | +0.012 |
| Item-1100 | SP7-10M | 20 mm | 5 mm | +0.012 |
| Item-1101 | SP7-11M | 24 mm | 5 mm | +0.004 |
| Item-1102 | SP7-12M | 28 mm | 5 mm | +0.004 |
| Item-1103 | SP8-3M | 6 mm | 6 mm | +0.015 |
| Item-1104 | SP8-4M | 8 mm | 6 mm | +0.015 |
| Item-1105 | SP8-5M | 10 mm | 6 mm | +0.006 |
| Item-1106 | SP8-6M | 12 mm | 6 mm | +0.015 |
| Item-1107 | SP8-7M | 14 mm | 6 mm | +0.015 |
| Item-1108 | SP8-8M | 16 mm | 6 mm | +0.015 |
| Item-1109 | SP8-9M | 18 mm | 6 mm | +0.006 |
| Item-1110 | SP8-10M | 20 mm | 6 mm | +0.006 |
| Item-1111 | SP8-11M | 24 mm | 6 mm | +0.015 |
| Item-1112 | SP8-12M | 28 mm | 6 mm | +0.015 |
| Item-1113 | SP9-2M | 12 mm | 8 mm | +0.006 |
| Item-1114 | SP9-3M | 14 mm | 8 mm | +0.015 |
| Item-1115 | SP9-4M | 16 mm | 8 mm | +0.006 |
| Item-1116 | SP9-5M | 18 mm | 8 mm | +0.015 |
| Item-1117 | SP9-6M | 20 mm | 8 mm | +0.015 |
| Item-1118 | SP9-7M | 24 mm | 8 mm | +0.015 |
| Item-1119 | SP9-8M | 28 mm | 8 mm | +0.015 |
| Item-1120 | SP9-9M | 32 mm | 8 mm | +0.006 |
| Item-1121 | SP10-3M | 14 mm | 10 mm | +0.015 |
| Item-1122 | SP10-4M | 16 mm | 10 mm | +0.006 |
| Item-1123 | SP10-5M | 18 mm | 10 mm | +0.015 |
| Item-1124 | SP10-6M | 20 mm | 10 mm | +0.015 |
| Item-1125 | SP10-7M | 24 mm | 10 mm | +0.015 |
| Item-1126 | SP10-8M | 28 mm | 10 mm | +0.006 |
| Item-1127 | SP10-9M | 32 mm | 10 mm | +0.015 |
| Item-1128 | SP10-10M | 36 mm | 10 mm | +0.015 |
| Item-1129 | SP10-11M | 40 mm | 10 mm | +0.015 |
| Item-1130 | SP11-5M | 18 mm | 12 mm | +0.007 |
| Item-1131 | SP11-6M | 20 mm | 12 mm | +0.018 |
| Item-1132 | SP11-7M | 24 mm | 12 mm | +0.007 |
| Item-1133 | SP11-8M | 28 mm | 12 mm | +0.007 |
| Item-1134 | SP11-9M | 32 mm | 12 mm | +0.018 |
| Item-1135 | SP11-10M | 36 mm | 12 mm | +0.018 |
| Item-1136 | SP11-11M | 40 mm | 12 mm | +0.007 |
| Item-1137 | SP11-12M | 50 mm | 12 mm | +0.018 |
| Item-1138 | SP13-1M | 5 mm | 2 mm | +0.009 |
| Item-1139 | SP13-2M | 6 mm | 2 mm | +0.009 |
| Item-1140 | SP13-3M | 8 mm | 2 mm | +0.002 |
| Item-1141 | SP13-4M | 10 mm | 2 mm | +0.002 |
| Item-1142 | SP13-5M | 12 mm | 2 mm | +0.009 |
| Item-1143 | SP13-6M | 14 mm | 2 mm | +0.009 |
| Item-1144 | SP13-7M | 16 mm | 2 mm | +0.009 |
| Item-1145 | SP13-8M | 20 mm | 2 mm | +0.009 |
| Item-1146 | SP13-9M | 24 mm | 2 mm | +0.009 |
| Item-1147 | SP14-1M | 5 mm | 2.5 mm | +0.002 |
| Item-1148 | SP14-2M | 6 mm | 2.5 mm | +0.009 |
| Item-1149 | SP14-3M | 8 mm | 2.5 mm | +0.009 |
| Item-1150 | SP14-4M | 10 mm | 2.5 mm | +0.009 |
| Item-1151 | SP14-5M | 12 mm | 2.5 mm | +0.009 |
| Item-1152 | SP14-6M | 14 mm | 2.5 mm | +0.009 |
| Item-1153 | SP14-7M | 16 mm | 2.5 mm | +0.009 |
| Item-1154 | SP14-8M | 20 mm | 2.5 mm | +0.009 |
| Item-1155 | SP14-9M | 24 mm | 2.5 mm | +0.009 |
| Item-1156 | SP15-2M | 6 mm | 3 mm | +0.009 |
| Item-1157 | SP15-3M | 8 mm | 3 mm | +0.009 |
| Item-1158 | SP15-4M | 10 mm | 3 mm | +0.009 |
| Item-1159 | SP15-5M | 12 mm | 3 mm | +0.009 |
| Item-1160 | SP15-6M | 14 mm | 3 mm | +0.002 |
| Item-1161 | SP15-7M | 16 mm | 3 mm | +0.009 |
| Item-1162 | SP15-8M | 20 mm | 3 mm | +0.009 |
| Item-1163 | SP15-9M | 24 mm | 3 mm | +0.009 |
| Item-1164 | SP16-4M | 10 mm | 4 mm | +0.009 |
| Item-1165 | SP16-5M | 12 mm | 4 mm | +0.002 |
| Item-1166 | SP16-6M | 14 mm | 4 mm | +0.009 |
| Item-1167 | SP16-7M | 16 mm | 4 mm | +0.009 |
| Item-1168 | SP16-8M | 20 mm | 4 mm | +0.002 |
| Item-1169 | SP16-9M | 24 mm | 4 mm | +0.009 |
| Item-1170 | SP17-1M | 10 mm | 5 mm | +0.009 |
| Item-1171 | SP17-2M | 12 mm | 5 mm | +0.009 |
| Item-1172 | SP17-3M | 14 mm | 5 mm | +0.009 |
| Item-1173 | SP17-4M | 16 mm | 5 mm | +0.002 |
| Item-1174 | SP17-5M | 20 mm | 5 mm | +0.012 |
| Item-1175 | SP17-5M | 24 mm | 5 mm | +0.012 |
| Item-1176 | SP17-6M | 30 mm | 5 mm | +0.012 |
| Item-1177 | SP18-1M | 12 mm | 6 mm | +0.012 |
| Item-1178 | SP18-2M | 14 mm | 6 mm | +0.012 |
| Item-1179 | SP18-3M | 16 mm | 6 mm | +0.012 |
| Item-1180 | SP18-4M | 20 mm | 6 mm | +0.012 |
| Item-1181 | SP18-5M | 24 mm | 6 mm | +0.012 |
| Item-1182 | SP18-7M | 30 mm | 6 mm | +0.012 |
| Item-1183 | SP18-7M | 40 mm | 6 mm | +0.012 |
| Item-1184 | SP19-3M | 16 mm | 8 mm | +0.012 |
| Item-1185 | SP19-4M | 20 mm | 8 mm | +0.012 |
| Item-1186 | SP19-5M | 24 mm | 8 mm | +0.004 |
| Item-1187 | SP19-8M | 30 mm | 8 mm | +0.012 |
| Item-1188 | SP19-7M | 40 mm | 8 mm | +0.004 |
| Item-1189 | SP20-4M | 20 mm | 10 mm | +0.012 |
| Item-1190 | SP20-5M | 24 mm | 10 mm | +0.012 |
| Item-1191 | SP20-8M | 30 mm | 10 mm | +0.012 |
| Item-1192 | SP20-7M | 40 mm | 10 mm | +0.012 |
